3.12L Hybrid Ultra Stroker Engine Build

Goals for the build:

- 550 rwhp/500+ ftlbs torque at 6300rpm, E85, 22-24psi
- 1 bar at 3500rpm bottom end performance
- Total cost for changes under $3260 for everything including new turbo

- Using 86 Block, dry sleeved, bored to just over 102mm, half filled (re-used)
- JE Small Block Chevy Pistons, Forged 4032
- Eagle 150mm Mitsubishi Rods (re-used)
- 3L crank, offset grind, 95mm stroke, cross drilled
- Compression Ratio is 8.0:1
- ARP Head Studs (re-used)
- Cometic Head Gasket
- ACL Race Rod Bearings (Coated)
- OEM Main Bearings
- Crank Scrapper (re-used)
- Modified Stock Intake, Ported, Honed (re-used)
- Late NA Cam, Stock Headers, Stock Intercooler
- High Flow Ported 8 Valve Head, 47mm intake valves (re-used)
- GT3582R Turbo (.82 A/R, Tial SS V-Band Turbine Housins)
- Non-Interference Design
- Self Fabricated 3" Exhaust, 3" Down Pipe, V-Band
- MoCal Oil Cooler (re-used)
- S2 Harmonic Balancer
- Rogue Modified M Tune

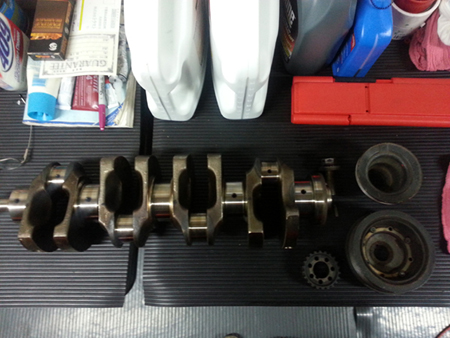

3.0L Crank and Harmonic Balancer I Bought on Ebay for $485 Delivered

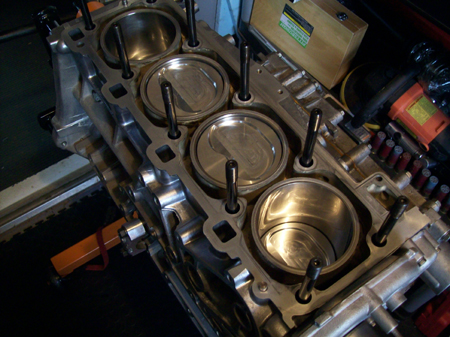

2.5L Sleeved Block (fresh hone)

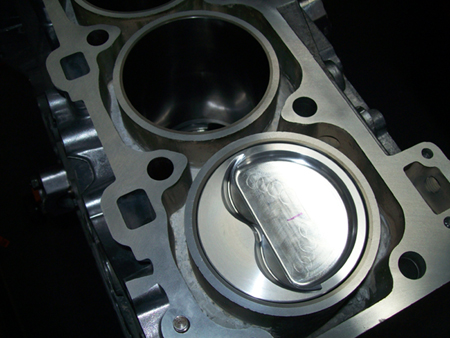

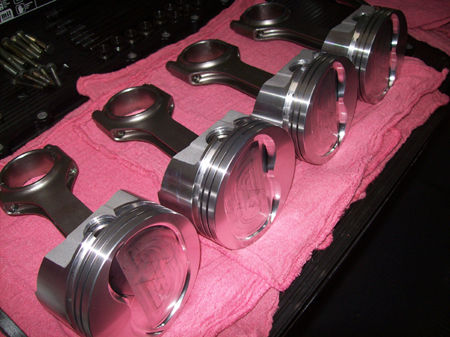

Eagle Mitsu Rods, JE Small Block Chevy Pistons

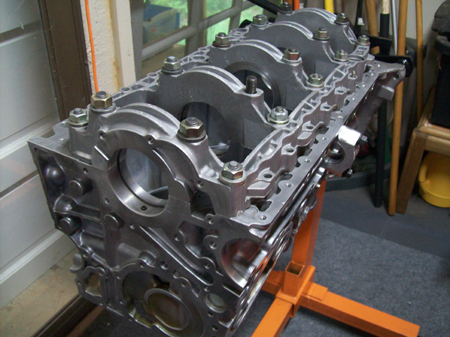

Half filled Block to Stabilize Cylinders

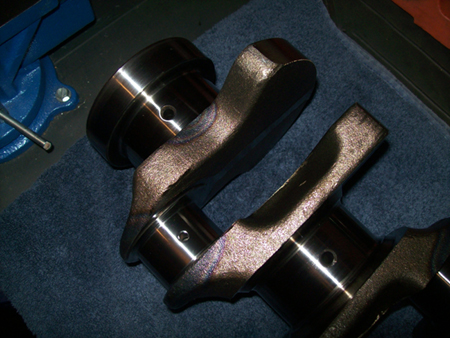

3L Crank Off-Set Grind to Produce 94.75mm Stroke

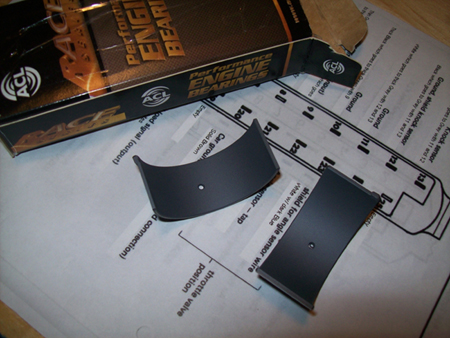

Coated ACL Mitsu journal Rod Bearings
ARP Head Studs

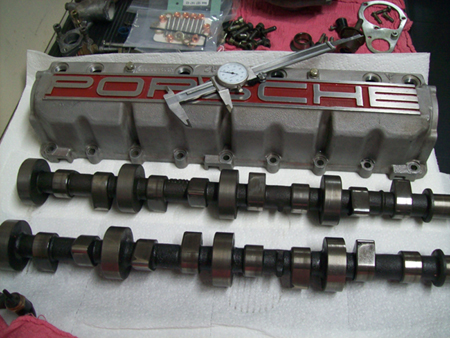

Late NA Camshaft

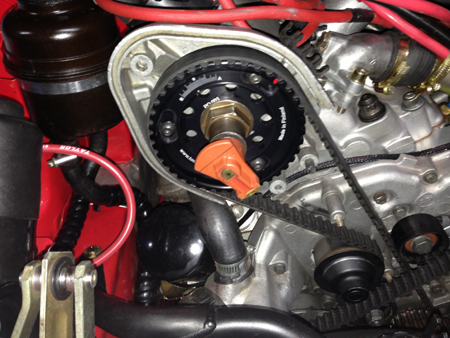

Engine is a non-interference design

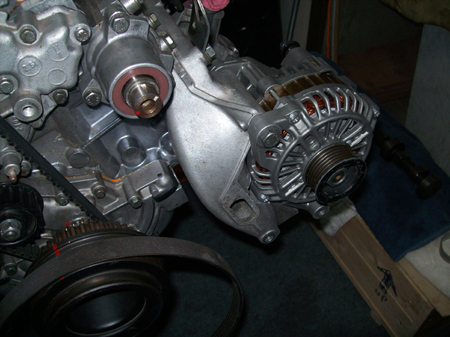

Nissan Quest Alternator Mod
Garrett GT3582R 0.82 a/r Turbo with Tial SS Turbine Housing
Completed the fab work for the GT3582R
Completed the fab work for the GT3582R

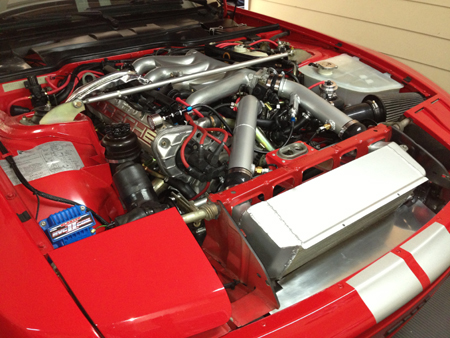

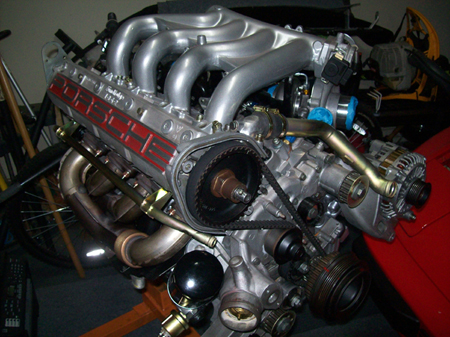

Completed Motor
