2.85L
Hybrid Stroker Engine Build
I love the idea of developing reliable,
large displacement motors at a reasonable
cost. This build is based on a design
developed by Sid McMullen. The motor
will be used mostly for street use with
occasional track days. I had some very high
goals for the build:
- 400 rwhp/400 ftlbs torque at 6200rpm
- Near k26/6 bottom end performance
- Total cost under $4200 for everything,
including my "High Flow" head
- Using 86 Block, dry sleeved, bored to just
over 102mm, half filled
- JE Small Block Chevy Pistons, Forged 4032
- Eagle 150mm Mitsubishi Rods
- 86 2.5L crank, offset grind, 86mm stroke,
cross drilled
- Compression Ratio is 8.1:1
- ARP Head Studs
- Cometic MLS Head Gasket
- ACL Race Rod Bearings
- Crank Scrapper
- Stock Cam
- MoCal 13 Row Additional Oil Cooler, 235 mm |
|
|
 |
|

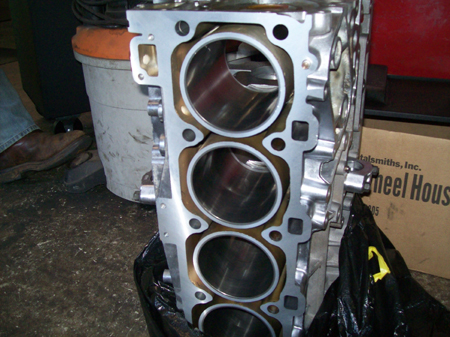

2.5L Block |
 |
|
Cast Iron Dry
Sleeves, Block Half Filled with Moroso Block
Filler |
 |
|
Eagle Mitsu
Rods, JE Small Block Chevy Pistons |
 |
|

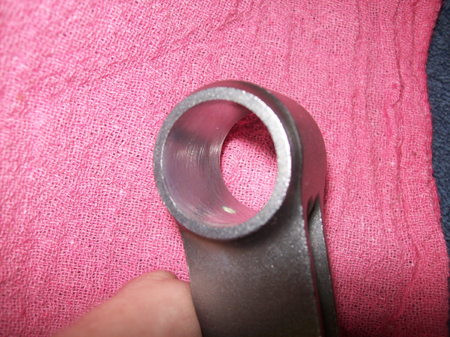

Modified Rods to
Use 0.927 SMC Wrist Pins |
 |
|

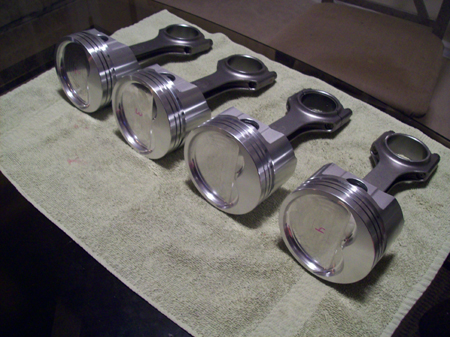

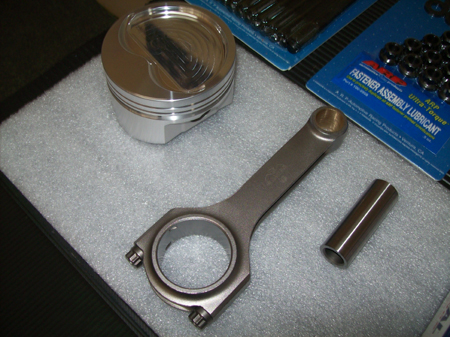

Assembled Rods
and Pistons |
 |
|

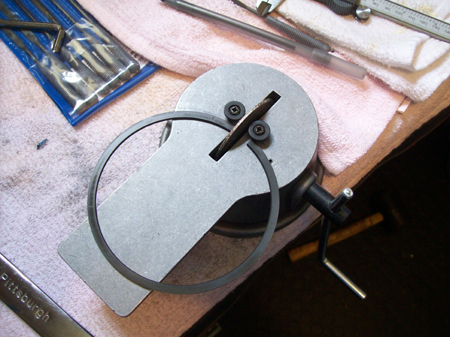

Gapping the
Rings |
 |
|

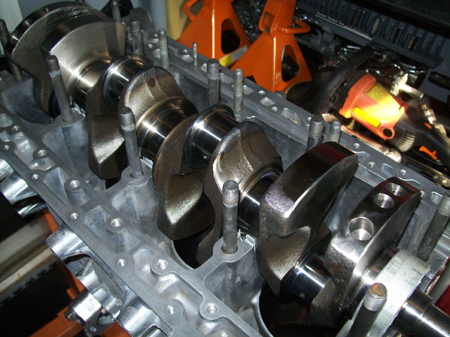

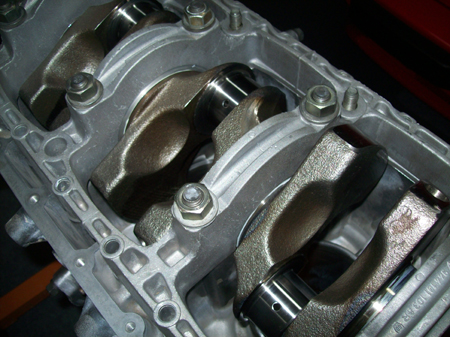

2.5L Crank
Off-Set Grind to Produce 86mm Stroke |
 |
|
Small Mitsu Rod
Journal Size |
 |
|

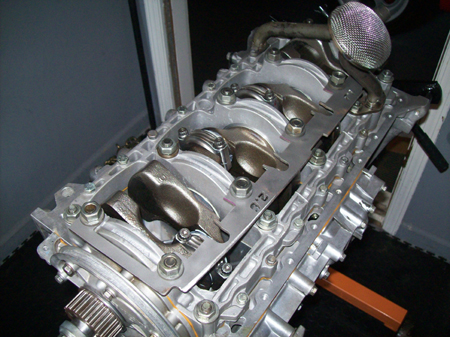

Crank Scrapper
|
 |
|

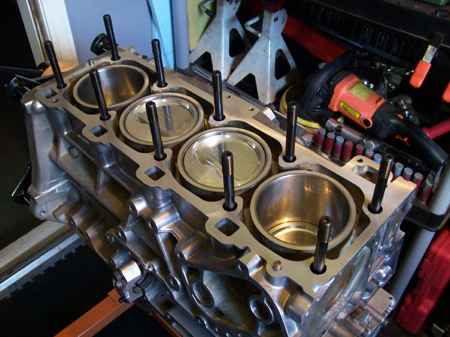

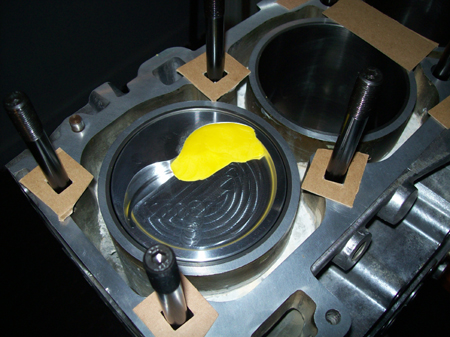

Filled Block to
Stabilize Cylinders |
 |
|
ARP Head Studs
Torques to 87 FtLbs |
 |
|

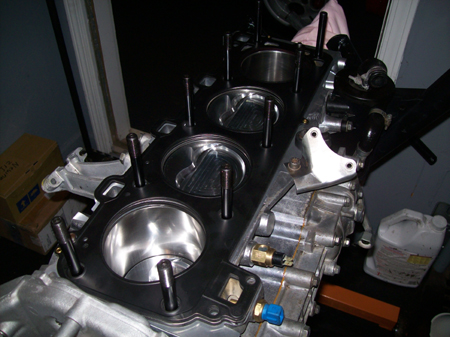

103 mm Cometic
MLS Head Gasket |
 |
|
Checking Valve
Clearance |
 |
|

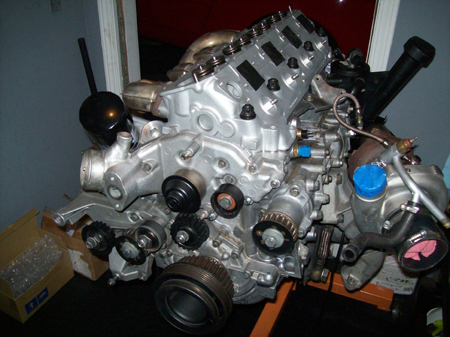

Nearly Completed
with Engine Assy |
 |
|

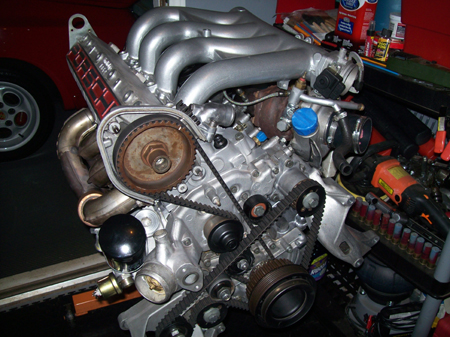

Completed 2.85L
Motor |
 |
|

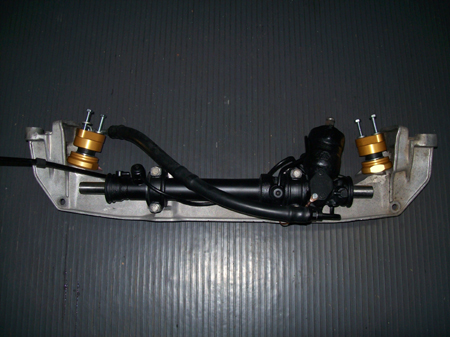

LR Semi-Solid
Engine Mounts |
 |
|

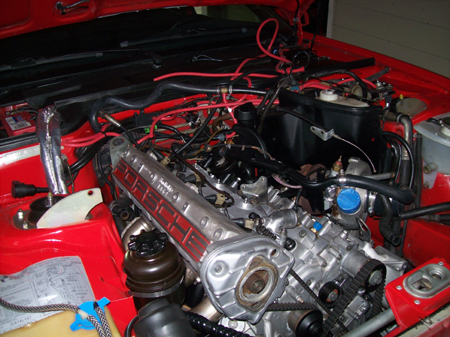

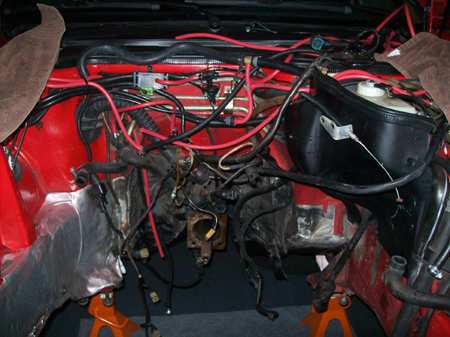

Engine Bay
Before Cleaning |
 |
|
Engine Bay After
Cleaning |
 |
|

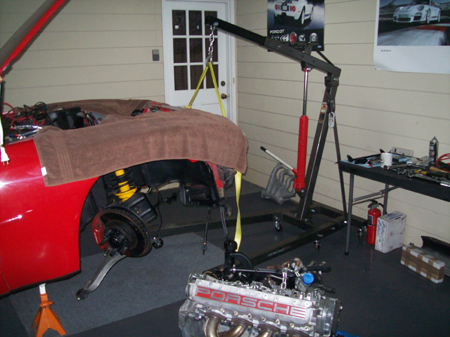

Getting Ready to
Install the Completed Motor |
 |
|

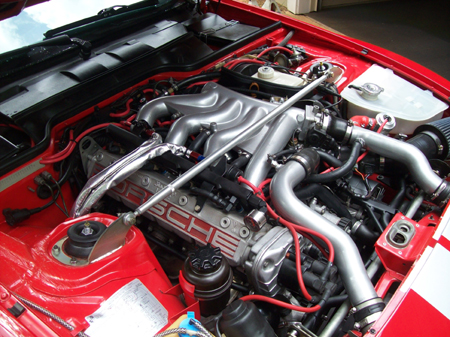

Finally Back in
the Car |
 |
|
Ready to Go |
|
|
|
|
|
|
