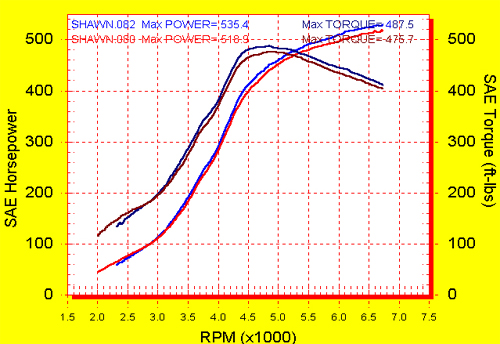

Boost: 24.2 psi
Fuel: E85
Mods: Hybrid Stoker 3.12L, Garrett GT3582R , Rogue M-Tune, Rogue
Tuner/Logger, 50 PSI FPR, MBC , 3" Exhaust, 3" DP, WG Dump,
160 lb Injectors, Tial 38mm WG with 1.1 bar spring, Modified Stock IC,
Custom IC Pipes, Ford 65mm TB, Custom Short Runner/Large Plenum Intake,
CEP Cam.

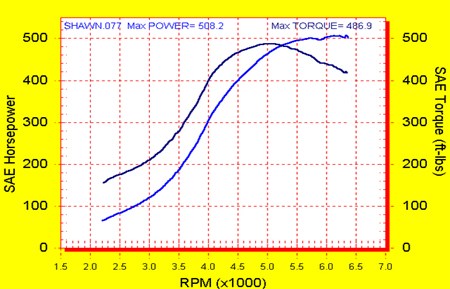

Dyno Day - 4/17/14
Boost: 24.8 psi
Fuel: E85
Mods: Hybrid Stoker 3.12L, Garrett GT3582R , Rogue M-Tune, Rogue
Tuner/Logger, 50 PSI FPR, MBC , 3" Exhaust, 3" DP, WG Dump,
160 lb Injectors, Tial 38mm WG with 1.1 bar spring, Modified Stock IC,
Custom IC Pipes, Ford 65mm TB, Custom Short Runner/Large Plenum Intake.

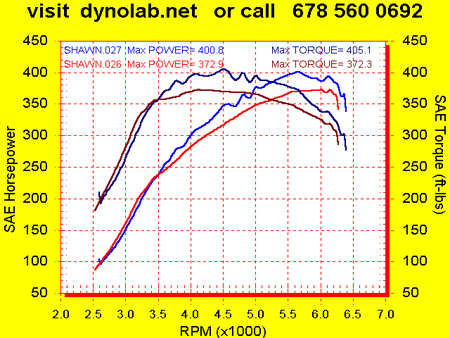

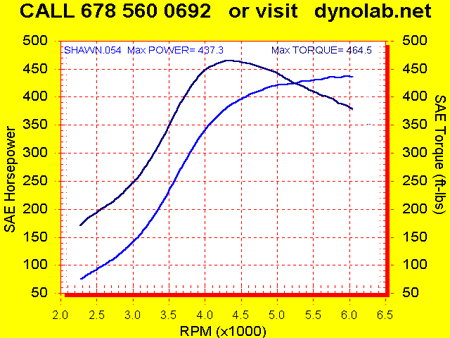

Dyno Day - 10/10/13
Boost: 20 psi
Fuel: E85
Mods: Hybrid Stoker 3.12L, Garrett GT3582R , Rogue M-Tune, Rogue
Tuner/Logger, 4 Bar FPR, MBC , 3" Exhaust, 3" DP, WG Dump, 5 80 lb Injectors, Tial 38mm WG with 1.1 bar spring,
Modified Stock IC, Custom IC Pipes, Ford 65mm Throttle Body.
Dyno Day - 9/28/12
Boost: 18 psi
Fuel: E85
Mods: Hybrid Stoker 2.85L, Garrett TO4E DBB .50 Trim Turbo, Rogue M-Tune, 3 Bar FPR, MBC , 2.5" Test Pipe,
WG Dump, 80 lb Injectors, Tial 38mm WG with 1.1 bar spring

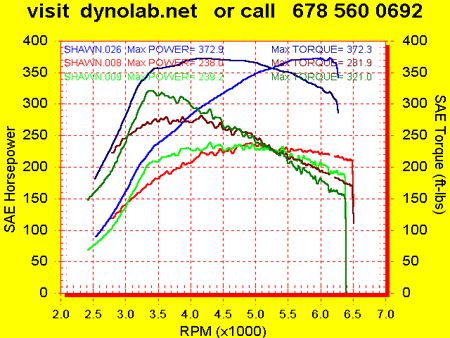

Overlay of dyno charts to show comparison between the my
2.5L (k26/6) and my
2.85L Hybrid Stroker motor (TO4E, 5o Trim, #8 Hotside).

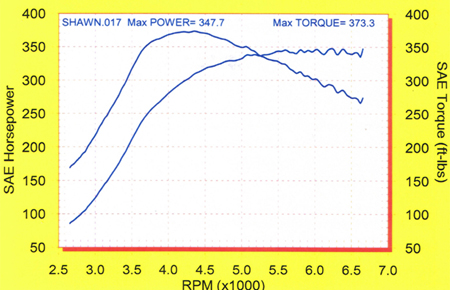

Dyno Day - 2/23/12
Boost: 18 psi
Fuel: E85
Mods: Garrett TO4E DBB .50 Trim Turbo, Rogue M-Tune, 3 Bar FPR,
Dual MBC (See Below), 2.5" Test Pipe,
80 lb Injectors, Tial 38mm Wastegate with 0.9 bar spring

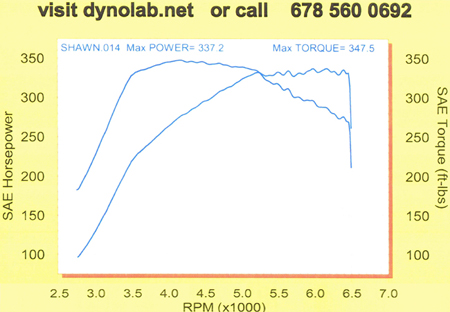

Dyno Day - 9/15/11
Boost: 18 psi
Fuel: E85
Mods: Garrett TO4E DBB .50 Trim Turbo, Rogue M-Tune, 3 Bar FPR, MBC, 2.5" Test Pipe,
80 lb Injectors, Tial 38 mm Wastegate with 0.9 bar spring
See the Video

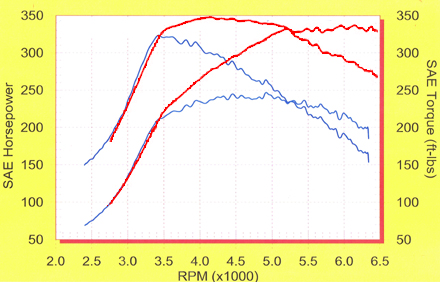

Overlay of dyno charts to see the
differences between the my K26/6 and the
TO4E with the M Tune (everything else the same) and it shows what I felt
from driving the car. I added 90 rwhp essentially without sacrificing
any bottom end performance.

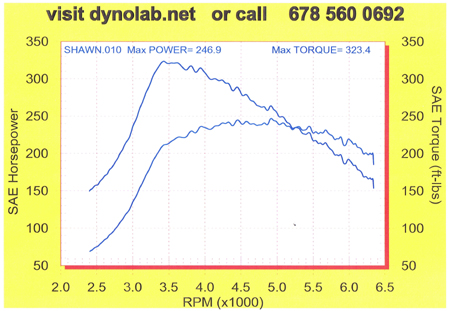

Boost: 18 psi
Fuel: E85
Mods: K26/6, AFM, Rogue Modified A-Tune, 3 Bar FPR, MBC, 2.5" Test Pipe,
80 lb Injectors, Tial 38 mm Wastegate with 0.9 bar spring

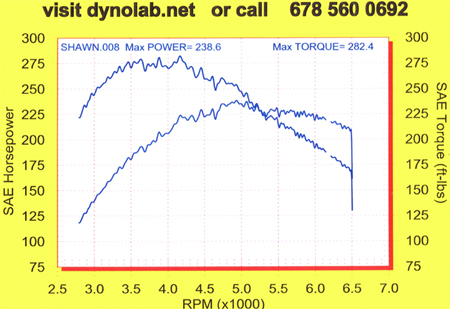

Boost: 15 psi
Fuel: Pump
Mods: K26/6, AFM, Rogue A-Tune, 3 Bar FPR, MBC, 2.5" Test Pipe
